TORC PHASE CHANGE MATERIAL “PCM” STORAGE MEDIUM = Earth Abundant Low Cost Organic Salts & Ionic Liquids

• Only Low Temp Latent Heat System, we are aware of in the World, leveraging the phenomenon of Phase Change

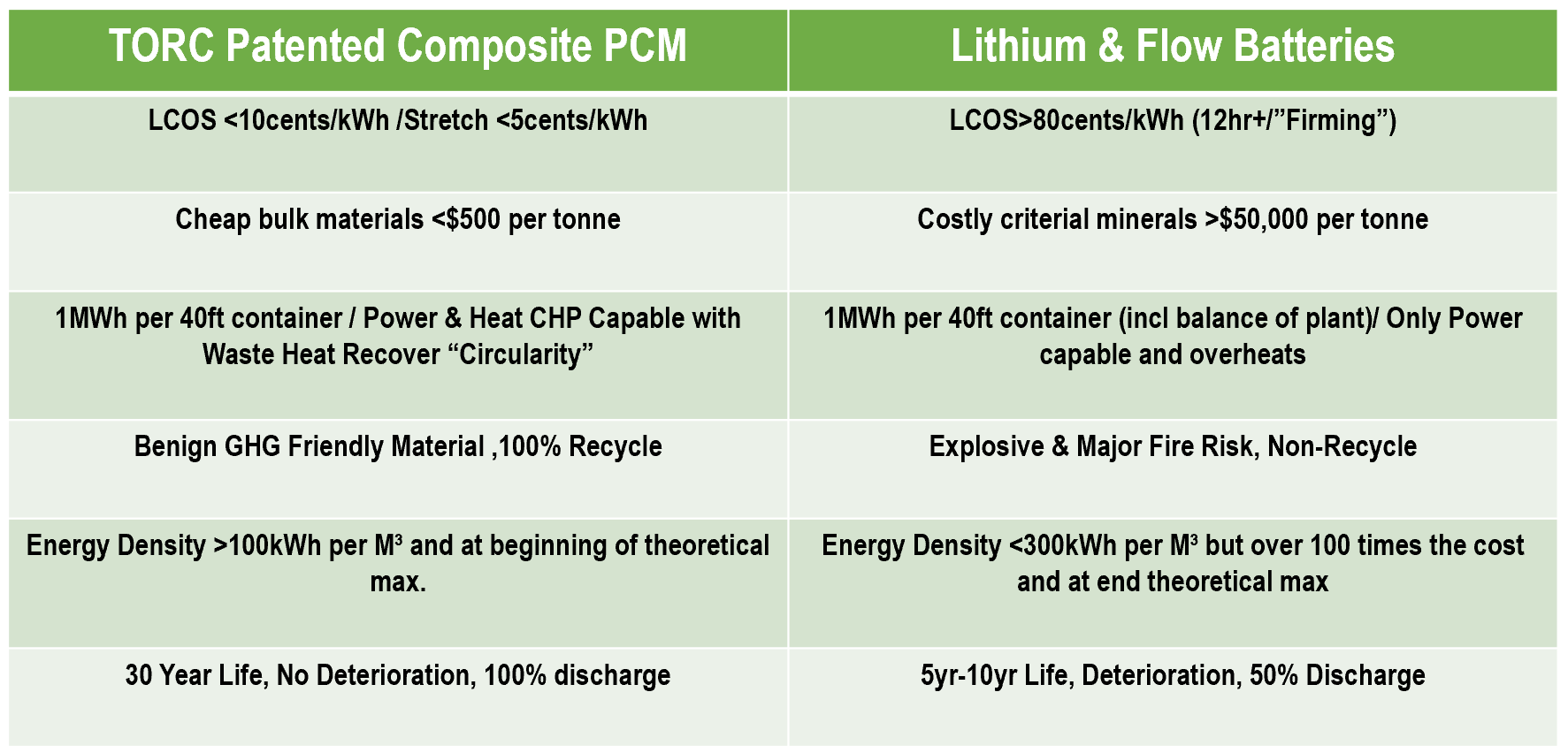

• Cheap earth abundant material less than $10 per kWh (lithium is $200 per kWh)

• High Energy density at only 130°C (others 700°C- 1400°C) stores 75kWh per cubic meter

• High IP Knowledge 7yrs R&D /Partnership with Monash University and RMIT. Access to Extensive Patent Library

• Only program globally looking at the low temp Latent Heat PCM range.

• High stretch range at start of theoretical limits

Storage Medium Advanced Material Science

Latent heat storage (LHS) is one of the most promising thermal storage methods in which the heat stored and released involves a phase transition. The materials used to store energy as latent heat are called phase change materials (PCMs). We are seeing a repeatable - in theory limitless Fusion Process as opposed to the traditional destructive Fission Process of burning to release energy as heat. These are the same outcomes that drive the quest for Cold Fusion.

Latent Heat, as opposed to conventional /traditional fissile (burning) ‘sensible” heat, offers unparalleled energy density (comparable to Li-Ion) in theory limitless recycling from Charge to Discharge and an extremely stable energy supply (as opposed to the sharp drop out of conventional heat).

This overall process mirrors the most successful Clean LDES system of Pumped Hydro Storage “PHS” EXCEPT we are deployable.

Many claim this, few are this in reality.

Like PHS we apply our own manufactured Pumps & Turbines but for Deploy-Ability, we use as our cheap PCM instead of water & gravity for our storage medium.

This allows us near unlimited and sustainable scale up for power duration, as achieved by a wood pile or coal pile or with PHS by just adding more water, except we never need to fill up our PCM Storage Medium and its Green.

High Energy Density at Low Temp >100kWh per mᶟ on only 130°C (other Latent Heat Thermals >500°C-1300°C) AND, at the beginning of theoretical maximum, Li-Ion near its End

TORC PCM offers several advantages, the most remarkable feature is its high energy storage capacity in comparison to the conventional thermal storage materials, resulting in reduction of the thermal storage unit size.

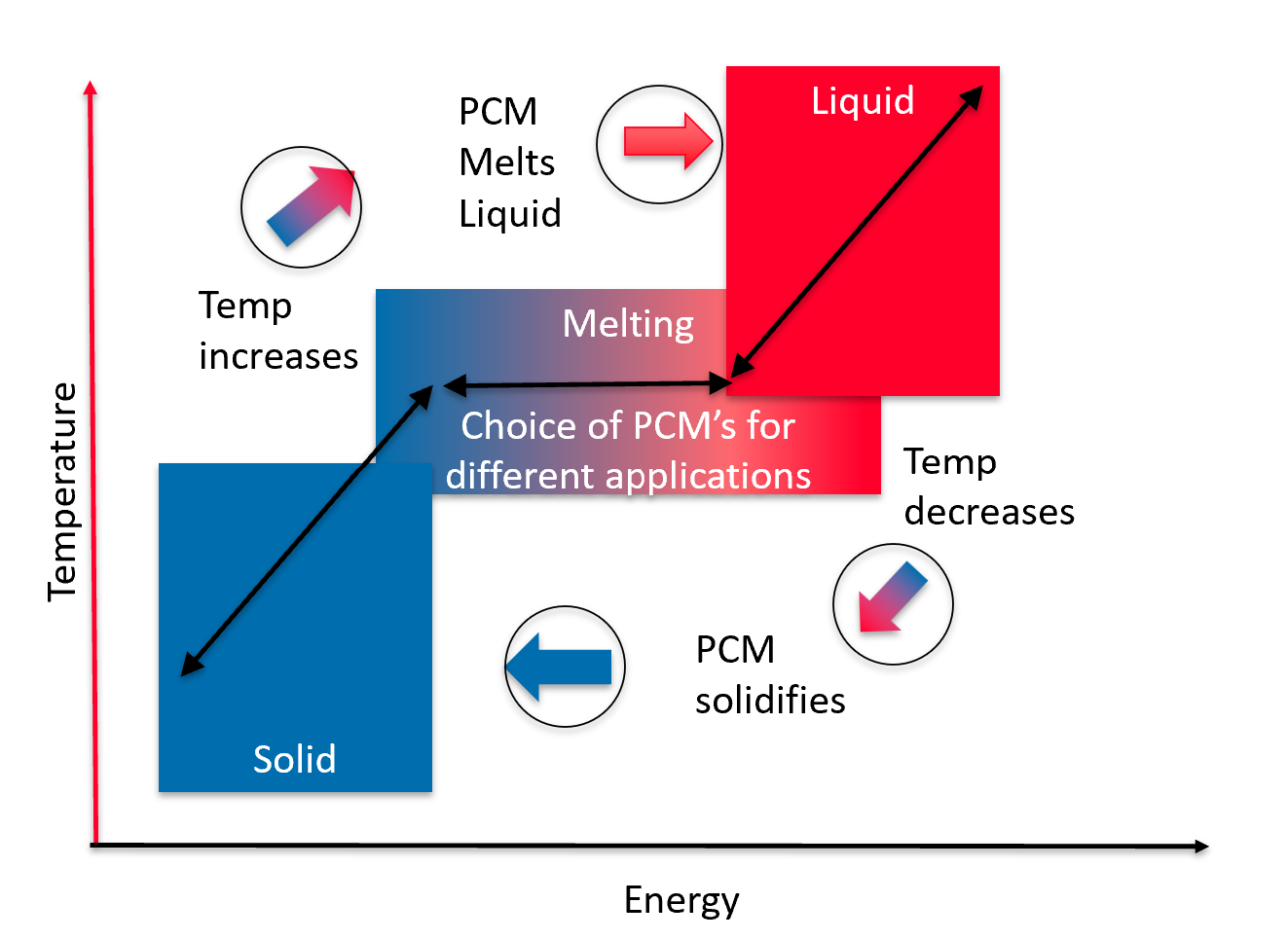

Another major advantage of PCM is its isothermal phase change characteristic, the heat is charged and discharged at a nearly constant temperature (phase change temperature) corresponding to the phase transition.

These excellent isothermal properties result in little loss in energy in transfer (unlike burning firewood loses >60% of its energy to waste heat) for a constant drive of the turbine generator.

To not use PCM as your 21st Century Storage Medium is like using aluminium instead of carbon fibre for your stealth fighter jet.

Our Composite Latent Heat Energy Storage Medium = Composite Phase Change Material “cPCM”

• Cheap Storage Medium

• Earth abundant materials / bulk commodities <$500 per mt

• High Energy Density >60kWh per mt

• Low CAPEX Cost less than $15 per kW and on LCOS under 1.5cents per kWh

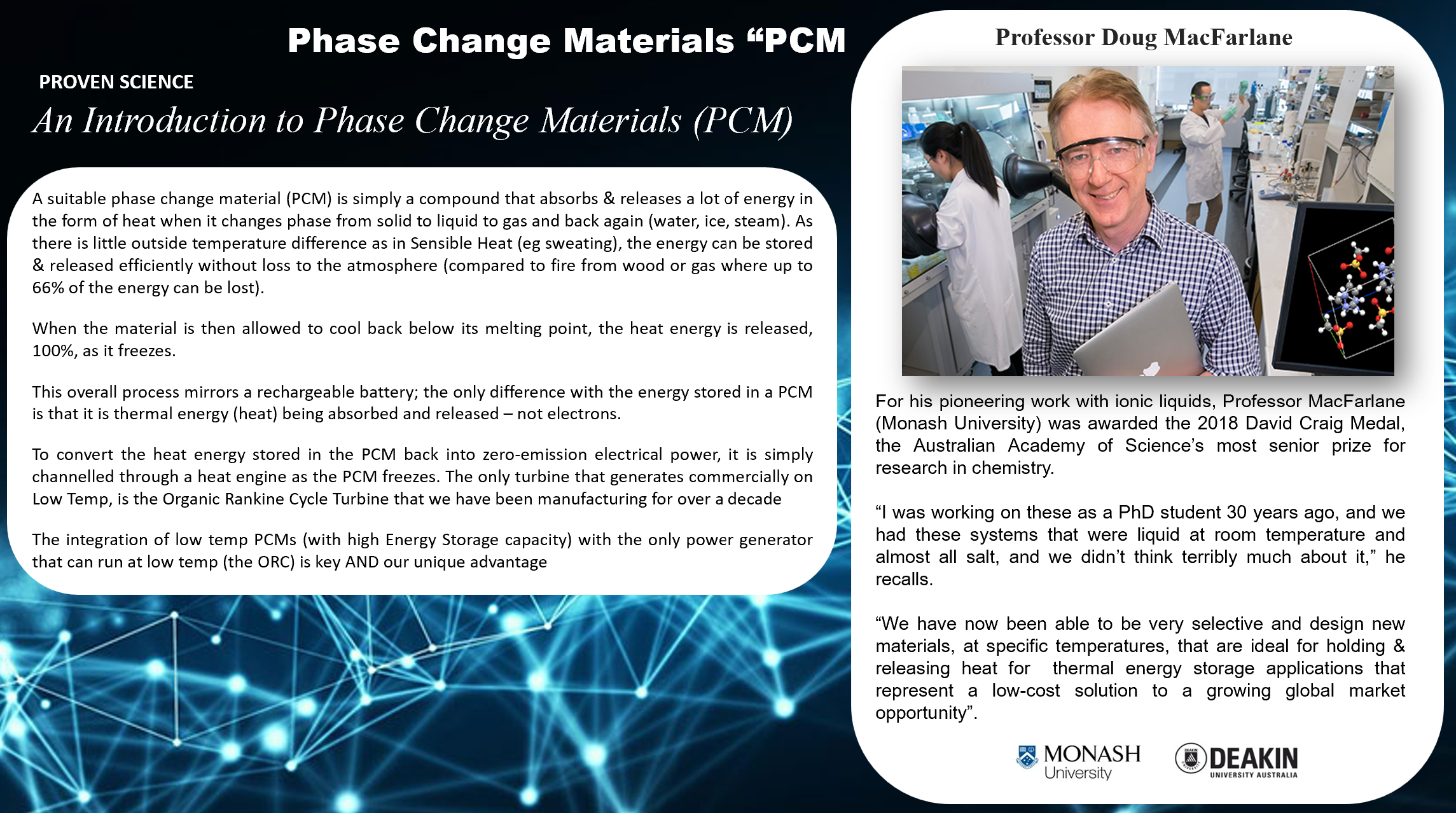

With Monash University we have developed a library of Low Temp Latent Heat Storage Mediums composed of materials of natural origin, in composite but with low processing burden

QUALITIES

• High Isothermal Properties for Constant Energy Supply and no drop off .

• Optimum heat of fusion (DHf),

• Phase transition temp can be tuned to suite application (need for cold or heat)

• High thermal conductivity & stability,

• No tendency to phase separate or degrade (high cyclicity / long life)

• Good phase-change kinetics (little supercooling, or crystallization),

• Chemical stability low toxicity/no GHG emissions and low flammability

• No / low expansion within Container (Minimum Volume Change / Compatibility with pipes, insulators etc.)

CORE PARAMETERS

• Optimum Temp Delta

• Long Life – high cycle >20yrs low degradation

• Totally benign compounds low to no GHG & Toxicity

• Energy Density within Low Temperature threshold for optimum running of both heat pump and ORC Electrical Generator

• Low Cost of materials and commodities that comprise the PCM. Threshold must be earth abundant (no critical minerals) bulk commodities
